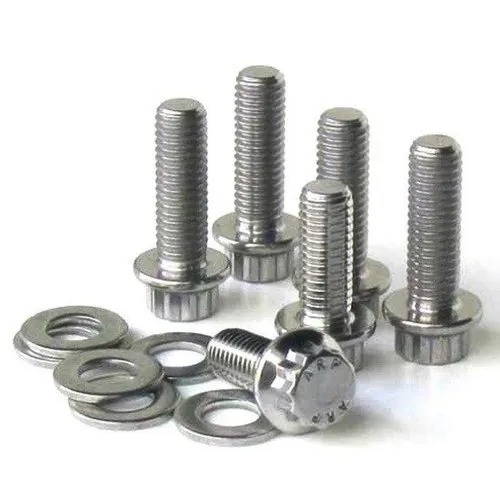

Nascent Pipe & Tubes offers an extensive quality collection of Incoloy Alloy 800 / 800H / 800HT Fasteners (Nuts Bolts), which is extremely resistant to corrosion and even in acidic environment. Because of its high nickel and chromium content, Incoloy 800 Hex Head Bolts resist oxidation and carburization at high temperatures.
The chemical balance allows the Incoloy 800H Square Nuts to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. For the first time, aluminum and titanium were listed as purposeful additions, and annealed Incoloy 800HT U-Bolts was differentiated from solution – annealed material.
Incoloy 800 / 800H / 800HT Bolt/Nut Manufacturers, Incoloy 800 / 800H / 800HT Bolt/Nut Suppliers, Incoloy 800 / 800H / 800HT Bolt/Nut Stockists, Incoloy 800 / 800H / 800HT Bolt/Nut Exporters
Incoloy 800 / 800H / 800HT Bolt/Nut Manufacturers in India, Incoloy 800 / 800H / 800HT Bolt/Nut Suppliers in India, Incoloy 800 / 800H / 800HT Bolt/Nut Stockists in India, Incoloy 800 / 800H / 800HT Bolt/Nut Exporters in India
Incoloy 800 Lock Nuts will not become embrittled even after long periods of usage in the 1200 Degree F – 1600 Degree F range where many stainless steels become brittle. The restricted chemical compositions, combined with the high temperature anneal, assure these materials have greater creep and rupture strength when compared to Incoloy 800H Eye Bolts. Many companies in a wide range of industries utilize Incoloy 800HT Wing Nuts for a number of applications, especially those that deal with temperatures about 1100 Degree F (600 Degree C).
Incoloy 800 / 800H / 800HT Bolt/Nut Manufacturers in Mumbai, Incoloy 800 / 800H / 800HT Bolt/Nut Suppliers in Mumbai, Incoloy 800 / 800H / 800HT Bolt/Nut Stockists in Mumbai, Incoloy 800 / 800H / 800HT Bolt/Nut Exporters in Mumbai
Incoloy 800 T-Bolts is especially useful for high – temperature equipment in the petrochemical industry since the alloy doesn’t form the embrittling sigma phase after long time exposure at 1200 Degree F. Incoloy 800H Panel Bolts have nickel – chromium – iron as the base metals, with additives such as molybdenum, copper, silicon and nitrogen.
Alloy 800/800H/800HT Bolt/Nut Specifications
| Specifications |
ASTM B 408 ASME SB 408 |
| Standard |
DIN, ASTM, BS and all International Standards |
| Length |
3 mm to 200 mm |
| Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Type |
Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |
800/ 800H/ 800HT Incoloy Alloy Bolt/Nut Chemical Composition
| Grade |
C |
Mn |
Si |
Fe |
S |
Cr |
Al-Ti |
Ni |
| 800 |
min. |
– |
– |
– |
39.5 |
– |
19.0 |
0.15 |
30.0 |
| max. |
0.1 |
1.5 |
1.0 |
- |
0.015 |
23.0 |
0.60 |
35.0 |
| 800H |
min. |
0.05 |
– |
– |
39.5 |
– |
19.0 |
0.15 |
30.0 |
| max. |
0.1 |
1.5 |
1.0 |
- |
0.015 |
23.0 |
0.60 |
35.0 |
| 800HT |
min. |
0.06 |
– |
– |
39.5 |
– |
19.0 |
0.85/0.25 |
30.0 |
| max. |
0.1 |
1.5 |
1.0 |
- |
0.015 |
23.0 |
1.20/0.60 |
35.0 |
Incoloy Alloy 800/ 800H/ 800HT Bolt/Nut Mechanical Properties
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 800-H-HT |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa –205 |
30 |
– |
– |
Equivalent Grades for 800 / 800H / 800HT Incoloy Bolt/Nut
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
OR |
| Incoloy 800 |
1.4876 |
N08800 |
NCF 800 |
NA 15 |
ЭИ670 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
XH32T |
| Incoloy 800H |
1.4958 / 1.4876 |
N08810 |
NCF 800H |
NA 15(H) |
ЭИ670 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
XH32T |
| Incoloy 800HT |
1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
- |
X8NiCrAlTi32-21 |
XH32T |
